03-024-01

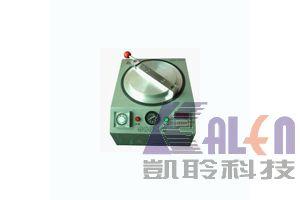

The pressure unit with an infinitely variable thermostatic temperature control and an arbitrary timer from 1-90 minutes is suitable for cold and hot polymers. The air pressure is variably adjustable up to max. 6 bar. At the backside is a water drain valve installed. The Polymax is also suitable for use without water for pressure compression.

The Polymax is made of high quality materials: special coated aluminum (pressure pot)

Technical data

·         Dimensions: H160 x W 290 x D290 mm

·         Pressure pot: Ø 150 mm

·         Pressure pot depth: 110 mm

·         Weight: 8 kg

·         Power consumption: 450 Watt at 115/230 V

·         Pressure min/max: 3/5 bar

·         Temperature range: up to 95°C
